COB light
DETAIL INFO

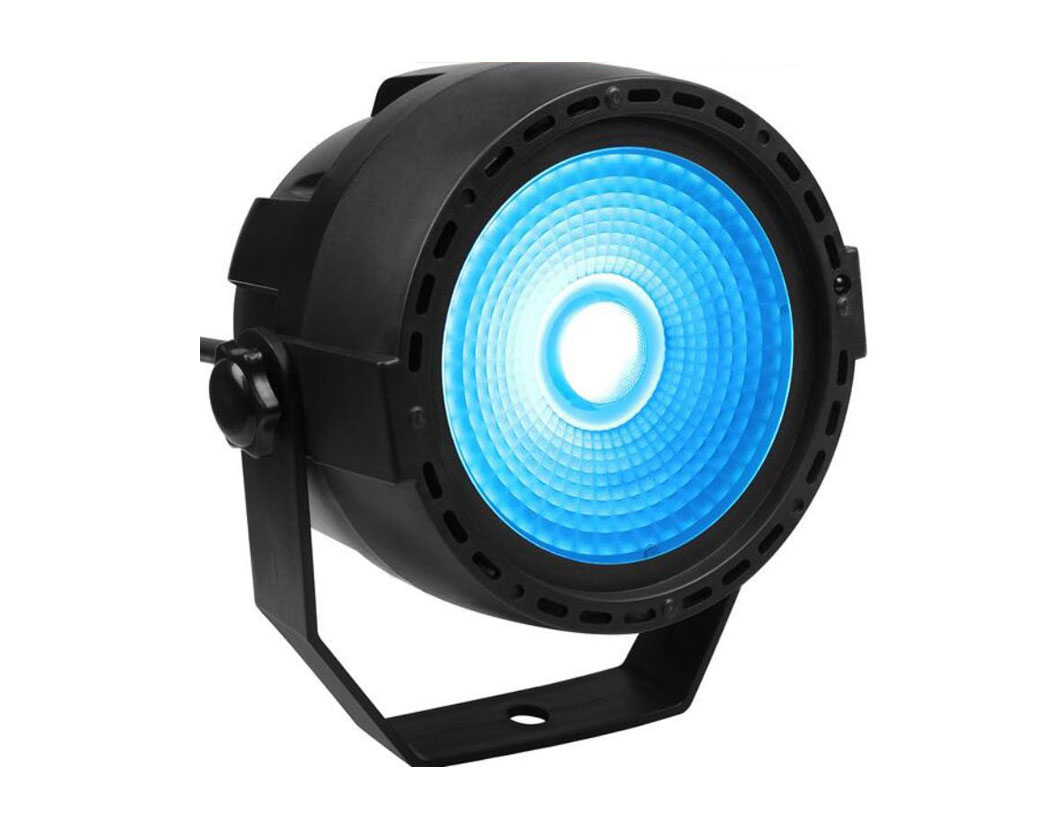

Led PAR light COB1
User Manual

Specification:
Voltage:AC90-240V  50-60Hz
Power:25W
Light source:1 piece *20W COB lamps
Control mode:Automatic,Voice control,DMX512,Remote control
Channel:6CH

DMX channel instruction:
1 0~255 Main Dimming
2 0~255 R Dimming
3 0~255 G Dimming
4 0~255 B Dimming
5 1~9 Not flashing
10~255 The larger the &#118alue, the slower the strobe speed
6 0~50 Manual mode, the first 5 channels are valid
51~100 Jump change, same as ’FF**’ mode, 5th channel speed control
101~150 Gradient, same as ’CC**’ mode, 5th channel speed control
151~200 Pulse change, same as ’EE**’ mode, the fifth channel speed control
251~255 Voice control mode with ’Soud’ mode


Button instruction:
Mode Sub Menu Function
A001~A511 A001~A511 DMX mode, Jump flash: DMX connected to the information
display SLAV: master signal has been received
Au** Au 1~Au7 Fixed color, 1-31 represents the color mixture of 5 colors of LED respectively.
Specific combinations as below.
FF** FF 1~FF99 Jump change, the greater the two digits, the faster the color changes
CC** CC 1~CC99 Gradient, the larger the last two digits, the faster the color changes
EE** EE 1~EE99 Pulse change, the greater the last two digits, the faster the color changes
F*** F001~F009 Not flashing
F010~F255 The higher the last three digits, the slower the strobe speed
AuTo AuTo Automatic mode,Loop playback:FF**、CC**、EE**、F***
Soud Soud Voice control mode 1
bLOF/bLON Press ENTER, "BL" flashes, "OF" means no voice control, no light, "ON" no voice black
VOL1~VOL9 Press ENTER, "VOL" flashes, the number "1~9" stands for voice sensitivity. The higher the &#118alue, the higher the sensitivity.


AU** mode color list ("1"represent light)
COLOR/NO 1 2 3 4 5 6   7
R 1     1   1   1
G   1   1 1     1
B     1   1 1   1
